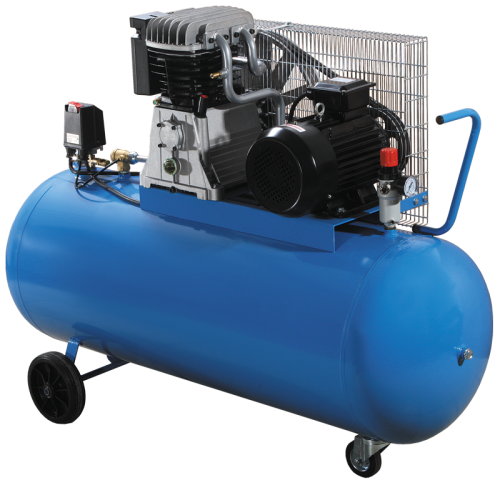

Piston Air Compressor 5,5 kW- 830l/min 81.02.055083
GD series piston air compressors constitute a more advanced and more reliable solution than similar screw compressors with direct drives.
KEY FEATURES
GD series piston air compressors constitute a more advanced and more reliable solution than similar screw compressors with direct drives.
The main advantage of this model is its construction using the V-Belt to allow for two separate cooling systems – one for the motor and one for the pump.
GD series piston air compressors are characterized by longer service life and can operate within the range of 8-10 bar.
Technical data:
| Dimensions [length x width x height] | 1300 x 130 x 590 mm |
| Max. working pressure | 10 bar |
| Performance | 830 l/min |
| Engine power | 5,5 kW |
| Engine power | 400 V |
| Tank capacity | 270 l |
| Noise | 82 dB |
| Weight | 220 kg |
Additional features:
- Cast iron tank
- Two compression levels
- Mobile – construction on wheels
- Pressure reducer with manometer and instant connect fittings
