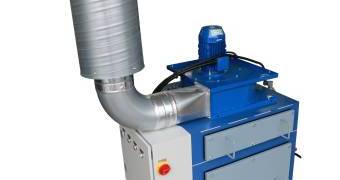

Dust collector ZO-200P
ZO 200P is a professional dedusting solution, designed to effectively remove dust and reliably filter harmful substances.
KEY FEATURES
ZO 200P is a professional dedusting solution, designed to effectively remove dust and reliably filter harmful substances.
The machine is equipped with a mid-pressure, centrifugal fan with a large fan coil. Filtering modules are made of net-strengthened polyester, which allows both for their efficiency and durability.
ZO 200P is recommended for industry and large work spaces.

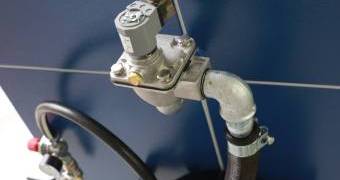

The machine has a fully-integrated automatic filter cleaning system as well as an easy-to-handle waste bin.
Performance curves of centrifugal fans:
If required, there is an option of installing a set of LDC silencing.
Technical data
* With a set of damping
| Measurements /width x height x depth/ [mm] | 1300 x 2100 x 900 |
| Filter surface [m2] | 20,00 |
| Suggested filter density [g/m²] | 260 |
| Filter efficiency [%] | 99,95 |
| Electrical connection [V] | 400 |
| Nmax [RPM./min] | 2820 |
| Capacity max [m3/h] | 3200 |
| Power [kW] | 2,20 |
| Volume [dB] | 79* |
| Diameter of inlet [mm] | 200 |
| Weight [kg] | 150 |
