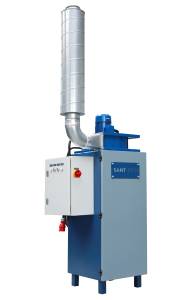

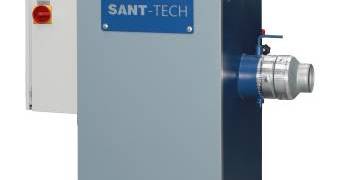

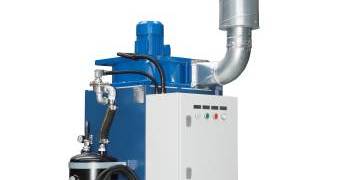

Dust collector ZO-150P
Efficient vacuum dust collector, designed to extract dust and other by-products (eg. wooden or metal chips) generated by metal or wood processing machinery, in particular by sandblasters.
KEY FEATURES
Efficient vacuum dust collector, designed to extract dust and other by-products (eg. wooden or metal chips) generated by metal or wood processing machinery, in particular by sandblasters.
ZO 150P is suitable for continuous operation. It maintains relatively low noise levels and does not take up much floor space.
The machine is equipped with a centrifugal fan, filter modules made of high-quality polyester, easy-to-handle waste bin and a fully-automated system that flicks dust from the filters at regular intervals.
Performance curves of centrifugal fans:
ZO 150 is a professional dedusting solution at a competitive price.
If required, there is an option of installing a set of LDC silencing.
Performance curves of centrifugal fans:
ZO 150 is a professional dedusting solution at a competitive price.
If required, there is an option of installing a set of LDC silencing.
Technical data
| Measurements /width x height x depth/ [mm] | 610 x 1600 x 750 |
| Filter surface [m2] | 10 |
| Suggested filter density [g/m²] | 260 |
| Electrical connection [V] | 400 |
| Power [kW] | 0,75 |
| Nmax [RPM./min] | 2820 |
| Capacity max [m3/h] | 1500 |
| Volume [dB] | 75* |
| Diameter of inlet [mm] | 100 |
| Weight [kg] | 70 |
* With a set of damping
